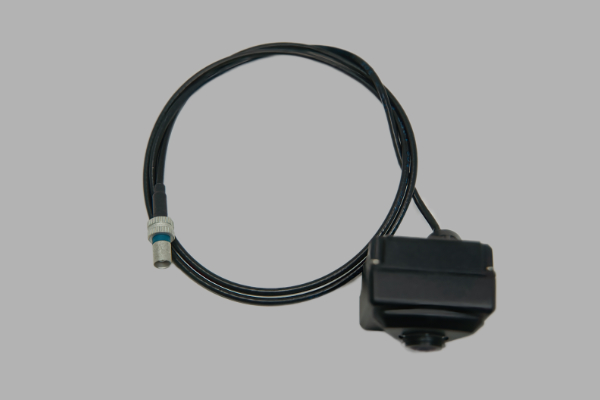

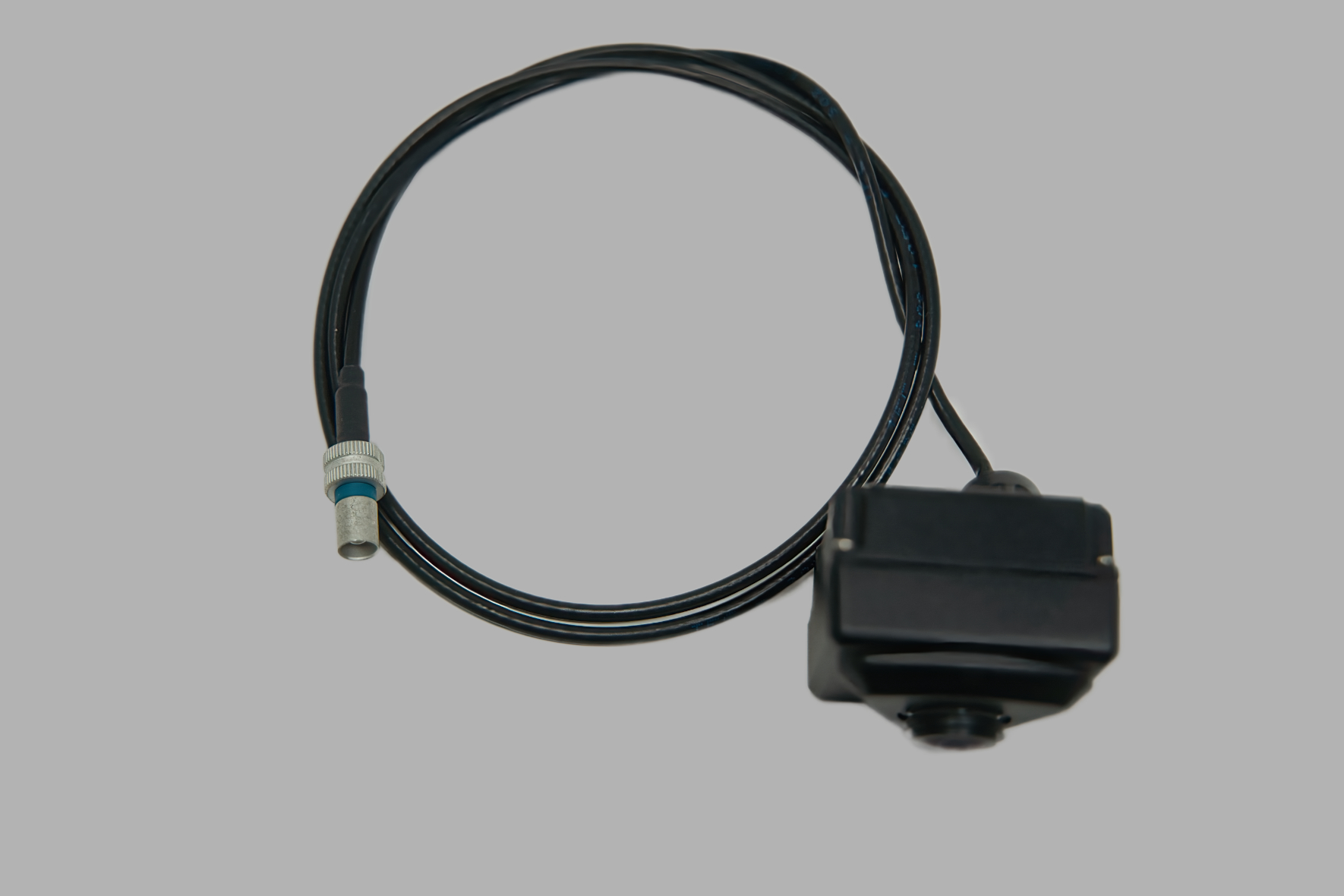

ArkCam Velos - GMSL2
The ArkCam Velos is a state-of-the-art 2-megapixel camera featuring a CMOS image sensor with HDR. It delivers a resolution of 1920x1080 pixels and captures crisp real-time images at up to 60 fps.For data transmission, the camera utilizes MIPI-CSI2 (YUV8) over GMSL2 at 3 Gbit/s. Connection is established via a robust coaxial cable with a GMSL2 serializer (MAX96717). Power is supplied via 9-36V DC using Power over Coax (PoC).With viewing angles of 60°, 90°, 130°, and 180°, the ArkCam Velos adapts to various applications. Designed for extreme environments, it operates reliably in temperatures ranging from -40°C to +85°C.The camera meets all relevant EMC regulations for industrial, agricultural, and construction machinery. It is shock- and vibration-resistant and, with its IP67/IP69K protection rating, offers maximum defense against dust, water, and high-pressure cleaning. The powder-coated aluminum housing ensures durability and long-lasting performance. Certifications are available upon request.Variants available in 6 Gbit/s and without ISP.
