ArkVisionUnit 10"

ArkVisionUnit 10"

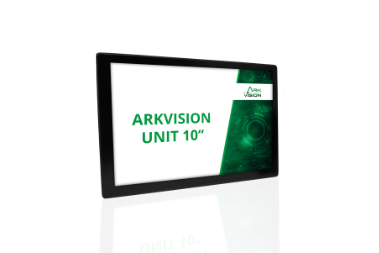

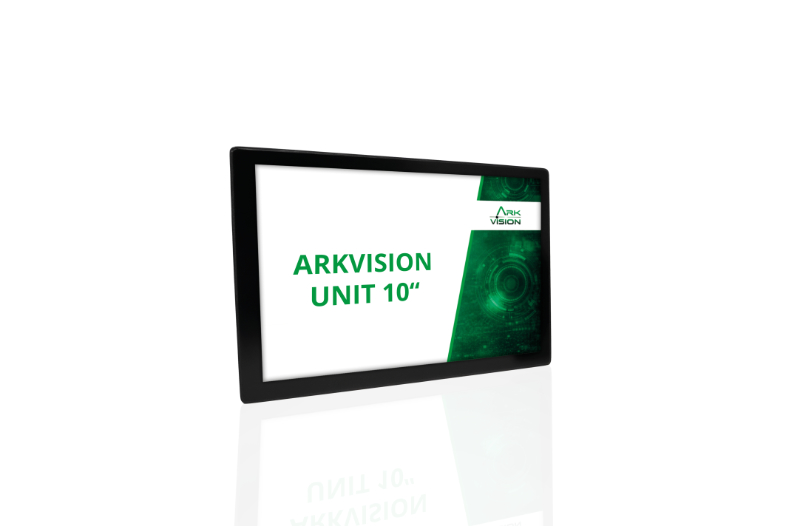

The robust & digital monitor of the ArkVisionUnit family in the image diagonal of 10" is our premium product of the digital display elements. With a resolution of 1280 x 800, it offers razor-sharp images and is ready for a wide range of applications. It offers a fully digital live video image display and is perfectly matched to our ArkCam series cameras. In addition to the freely configurable trigger lines, a wide variety of views and functions can be easily set by the user, which emphasizes the user-friendliness. What makes this monitor unique is the possibility to fully integrate it into existing architectures via CAN and to record video streams or snapshots and save them in the internal memory. Our monitor is rounded off by the high standards required in terms of shock and vibration resistance for mobile applications as well as the IP65 protection class.Our monitor is developed and manufactured in Germany.

Product details

Key facts:
Screen resolution 1280x800
Screen brightness 1100cd/m²
Operation via Touch
Stromversorgung 9-32V DC
Temperature range von -30°C bis +80°C
Compact robust design
Protection class nach IP65
Housing Automotive PC-ABS
