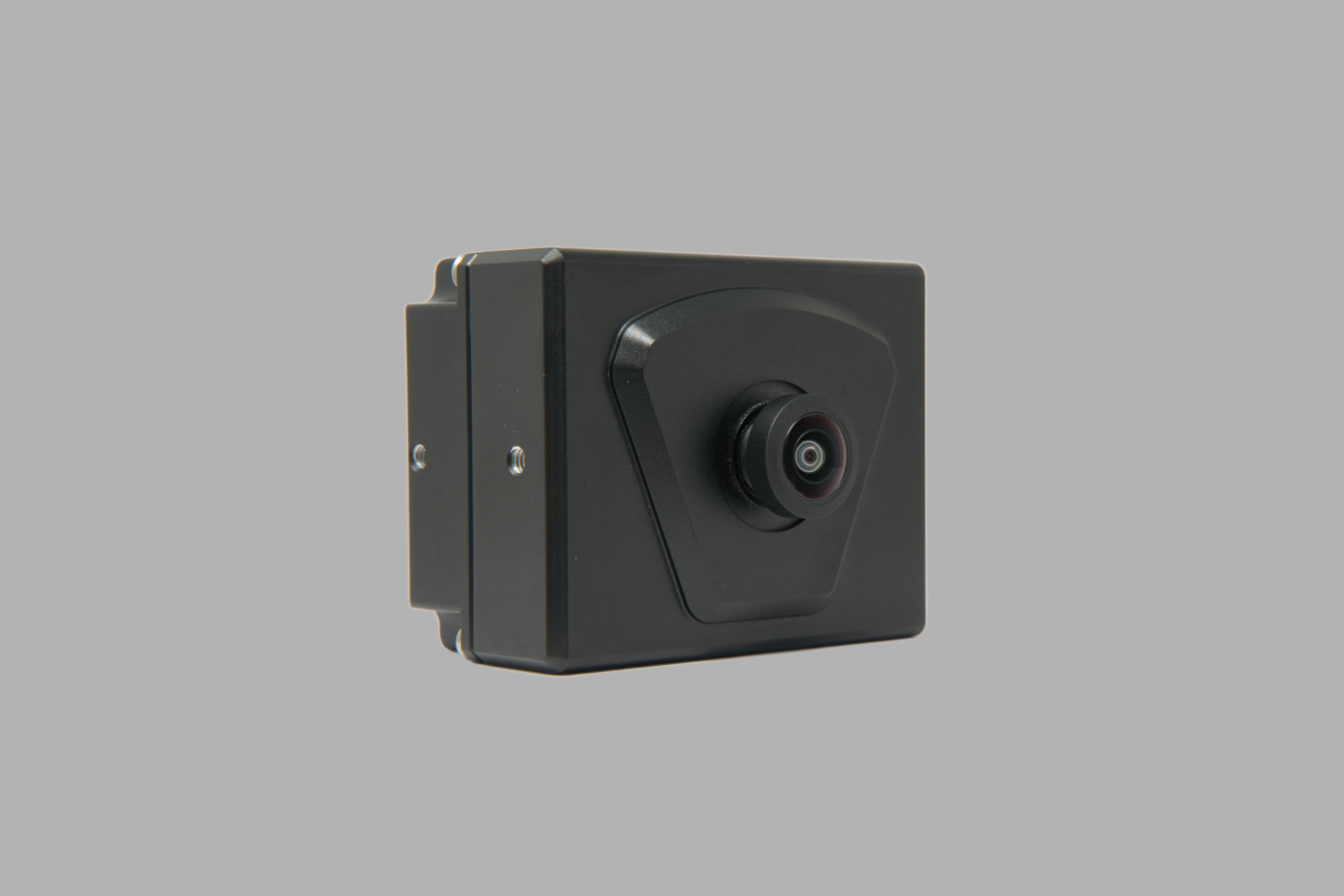

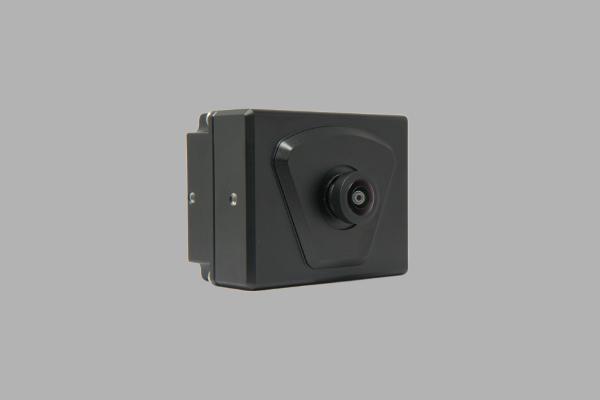

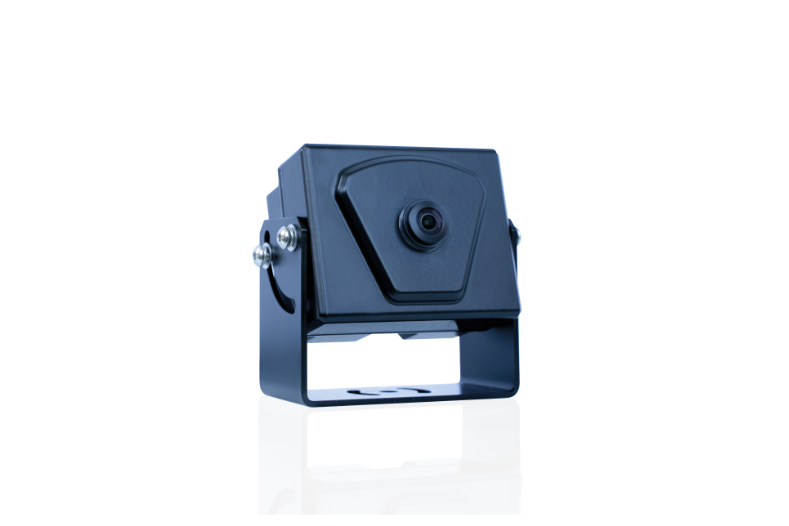

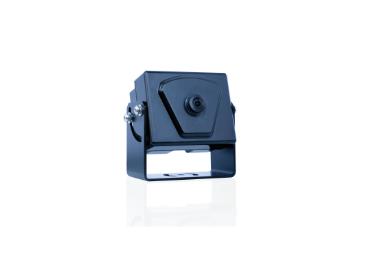

ArkCam Equinox
The ArkCam Equinox is a high-performance industrial camera featuring a 5-megapixel CMOS sensor with HDR support for sharp and detailed images. It supports H.264, H.265, and MJPEG with a maximum resolution of 2592 x 1944 pixels at 30 fps.Power supply options include 9-60V DC or PoE (IEEE802.3af-2003, Mode A). Designed for demanding environments, the camera operates reliably in temperatures from -40°C to +85°C and features IP67/IP69K protection, as well as shock and vibration resistance, making it ideal for industrial applications, agricultural machinery, forklifts, and construction vehicles. EMC certifications are available upon request.It supports Ethernet (100BASE-TX) or Single-Pair-Ethernet (100Base-T1) and offers optional LED illumination (white light or IR 850 nm). The anodized aluminum housing ensures durability. Supported protocols include RTP/RTSP, TCP/UDP, REST API, HTTP, and ISO17215. Configuration is managed via WebGUI or TCP. An optional person detection feature is available. With its high image quality, rugged design, and versatile application options, the ArkCam Equinox is the ideal solution for demanding environments.
